Home > Products > Mirror Mount&Accessories > Accessories > ACFS series Adjustment Screw

ACFS series Adjustment Screw

Inquiry
Download
Details
Brief Introduction:
ACFS series adjustment screw is the cost effective mechenics to adjust the position without reading scales. Normally the micrometer drive screw pitch is 0.5mm, the fine adjustment screw can down to 0.25mm or more.So in the case of no need of the reading scales of the micrometer, the fine adjustment screw can be more sensitivity and less cost. Zolix adjustment screw has the same mounting diameter φ9.5mm as micrometer drive, so that each of them can be switched easily.

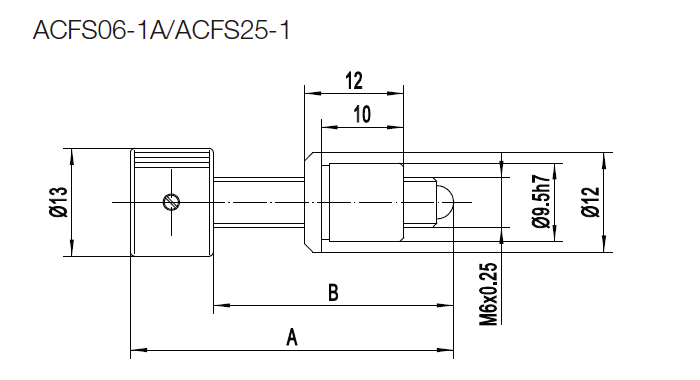

Dimensions:



Model

Translation Range (mm)

Adjustment Screw Thread

Screw Pitch (mm)

Mounting Diameter(mm)

Mounting Length(mm)

Overall Length A

(mm)

Screw Rod Length B

(mm)

Thumb Wheel Diameter

(mm)

ACFS06-1A

6

M6x0.25

0.25

φ9.5

10

32

22
